Locked Offroad Shocks Bump stops are designed to handle anything you can throw at them. They are built out of some of the highest quality materials to ensure a long shock life and reduce environmental wear.

Note:

IN STOCK!
Locked Offroad Shocks stand behind their product 100% and offer a one year warranty on non wearable parts and a 6 month warranty on wearable parts. Intended for off-highway use.

Features

Viton Seals: Deliver outstanding resistance to high temperatures, oils, and harsh chemicals for maximum durability.
4130 Chromed & Polished Shafts: Provide excellent strength, corrosion resistance, and ultra-smooth performance.
Black Zinc-Coated Steel Shock Bodies: Built to withstand the elements with superior corrosion protection and toughness.
6061 Machined Aluminum: Precision-machined components finished in a deep black anodizing for enhanced durability and sleek aesthetics.

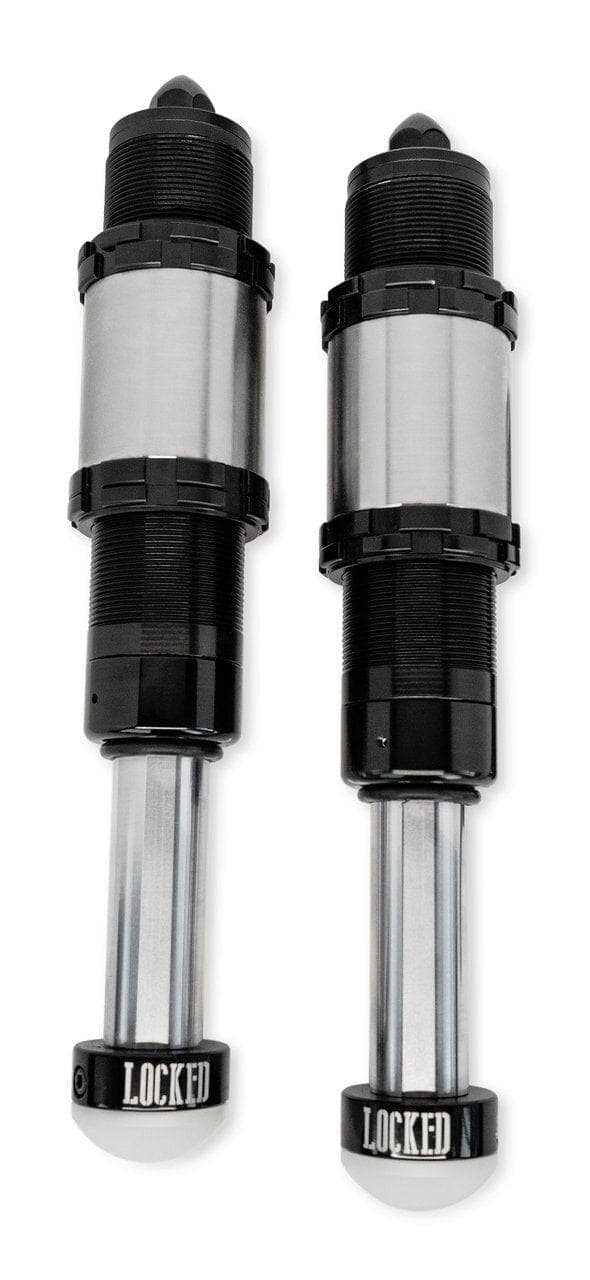

PAIR OF 2.0 BUMP STOPS W/ 2" & 4" TRAVEL OPTIONS

Hydraulic bump stops
Fully re-buildable
Adjustable oil volume and nitrogen pressure
Includes mounting sleeves
2 sets of locking rings per bump stop

Specs

2.0” diameter body
2" stroke has an extended length of 11.75" and a collapsed length of 9.75"
4" stroke has an extended length of 14.75" and a collapsed length of 10.75"
Large 1.26” diameter shafts are hard-chromed, preventing rusting and essentially creating a self-cleaning system.
Shafts are polished to a mirror-like finish, ensuring extended seal life.
Shrader cap mounts directly to the body of the bump stop, not the valve, creating a stronger seal, keeping everything clean and dry by keeping out dirt and moisture.
O-ring on shaft gauges your travel
Delrin contact pad is mounted with a single flushmount design, protecting your suspension and insuring quiet operation, with no metal on metal contact.

Mounting Sleeves

Heavy-duty mounting sleeves, come ready to weld.
Threaded can dimensions are 2.52" OD and 2.55" Tall. Total OD with lock rings is 2.72"
Threaded cans hold the bump stop around the entire diameter, providing 360° coverage without any pinching like traditional pinch-style cans.
Sleeves built to allow room for shrinkage during the welding process
